AUX204
1 HD-SDI + 2 10/100 Ethernet +RS485 + Audio over single fiber TX/RX
PN: F-1MSDI-2ET
Description
The F-1MSDI-2ET-TX/RX - 1 HD-SDI + 2 10/100 Ethernet + RS 485 + ( Analog Audio optional) over single fiber Extender
1 Unidirectional HD-SDI
2 Shared Bi-directional 10/100 Ethernet (2 RJ45 Ports)
1 Uni-Directional RS485 (Tx to Rx)
2 Analog Audios (optional)
The Thor Fiber F-1MSDI-2ET is a compact power house that will allow any user to transport one single channel of 1.485Gbps HD-SDI Serial Data Interface uni-directionally while simultaneously transmitting two fast Ethernet 10/100Mb/s data. Furthermore this Thor Fiber Kit of Transmitter and Receiver will send RS485 in reverse for easy control over the kit. This sturdy unit creates an easy drop environment for users that require HD-SDI and Dual Fast Ethernet across any application and even allows additional AUX Cards which can allow a plethora of other options such as RS232 and RS422, and even capable of carrying external analog audio instead of the SDI embedded audio. Thor Fiber has an excellent reputation for high quality and low cost products to help complete your project on time, in a loss free high quality kit that will ensure you stay under budget. Commonly used in security applications, live performance environments, video surveillance, SDI distribution and control in any environment.
Units could have 2 diferent form factors
- Stand Alone

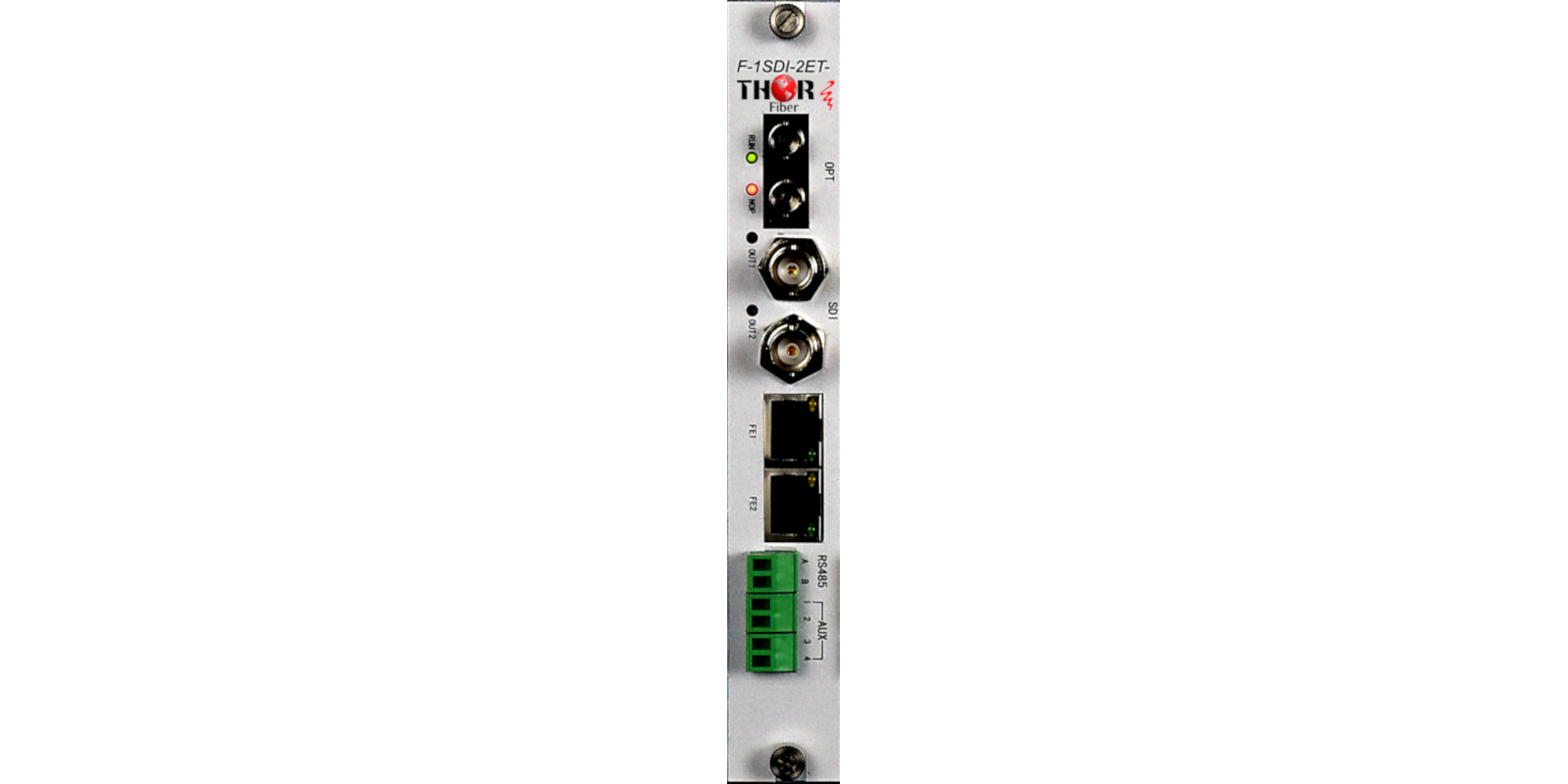

- Blade- Card - CA
|
|
 |
Base Model F-M1SDI-2ET-TX/RX support single mode fiber up to 20Km and it has ST/PC connector
Features
- SMPTE-292M HD-SDI standard, supports 1.485Gb/s
- Transmitter: one SD/HD-SDI input (BNC), one looping SD/ HD-SDI output(BNC) and two fast Ethernet interfaces(shared 100M bandwidth, supports port-based VLAN)
- Receiver: two SD/HD-SDI output (BNC) and two fast Ethernet interfaces(shared 100M bandwidth, supports port-based VLAN)
- One auxiliary card, which can be 1-channel bi-directional audio, or two-channel unidirectional audio, or 2-channel contact closure input/output, or 1-channel bi-directional RS422/RS232 channel
- One bi-directional RS485 channel, half duplex, up to 115.2Kb/s baud rate
- Supports 1080P@29.97, 1080I@59.94, 720P@59.94 -NTSC version , 50hz for PAL version
- Integrated cable equalizer
- Embedded ESD and surge protection circuit to prevent damage from static and thunder
- NOP (No optical signal) alarm indications, output status indicator and input lock indicator
- APC circuit for stable optical power
- Units are also avialable as (cards) - blades for our 17 slots U3 19" rack mountable chassis.
Drawings
Model Selection
NTSC version : F-1MSDI-2ET-TX/RX - 1 HD-SDI + 2 10/100 Ethernet +RS485 + Audio over single fiber Transmitter + receiver Kit ( NTSC resolutions : 720x480i/29.9, 59.94,60 Hz , 1280x720 29.97,59.94/60Hz, 1920x1080 29.97,59.94/60Hz
PAL version (special order only) : F-1MSDI-2ET-TX/RX-PAL - 1 HD-SDI + 2 10/100 Ethernet +RS485 + Audio over single fiber Transmitter + receiver Kit ( NTSC resolutions : 720x480i/50 Hz , 1280x720 50Hz, 1920x1080 50Hz
Addition Available AUX Cards: - (External Analog Audio, 10/100 Ethernet, Gigabit Ethernet, RS422, RS232) (add $)
AUX cards selection:
 |
 |
1-channel bidirectional RS422
AUX205
 |
|
2-channel bidirectional RS232
AUX206
 |
 |
2-channel bidirectional audio
AUX207
|
|
2-channel unidirectional audio output
AUX208
|
|
2-channel unidirectional audio input
AUX211
|
|
4-channel unidirectional audio input
AUX212
|
|
4-channel unidirectional audio output
AUX201
|
|
2-channel contact closure input
AUX200
|
|
2-channel contact closure output
 |
Specification
|
1 HD-SDI, SD-SDI 0 - 1.5 Gbps Serial Digital Signal |
|
1 SDI (Uni-Directional) 2 10/100 Etherent -Shared (RJ45) |
|
> 380mVp-p |
|
75Ω |
|
BNC |
|
20Km (40, 60, 100Km Available ) |
|
25×116×110 |
|
130 - 260 VAC @ 50-60 Hz |
|
<10W |
|
0 to +70 Degree |
|
0 to 95% |
|
ST/PC or ( FC/PC or SC/PC or SC/APC optional) |
|
TDM type |
|
Non-condensing Power, Link |
Question and Answers
Availability:In stock
Condition:New
Shipping:starting at $22.00
Warranty:2Yrs
Price:$1,995.00
