1-4 SDI to DVB-T RF Modulators and IPTV Streaming Encoders

HD-SDI to RF, HD to DVB-T, SDI to DVB-T

1-4 HD-SDI Encode, Combine, Modulate: DVB-T

Broadcast Live HD-SDI Video & ASI as DVB-T & IPTV Channels

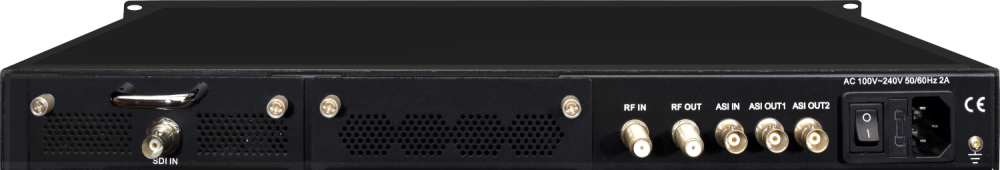

1 SDI input - PN: H-1SDI-DVBT-IPLL

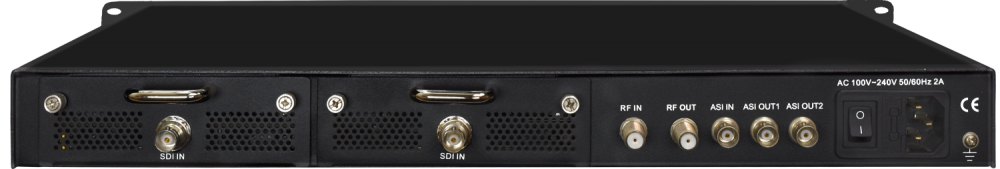

2 SDI input - PN: H-2SDI-DVBT-IPLL

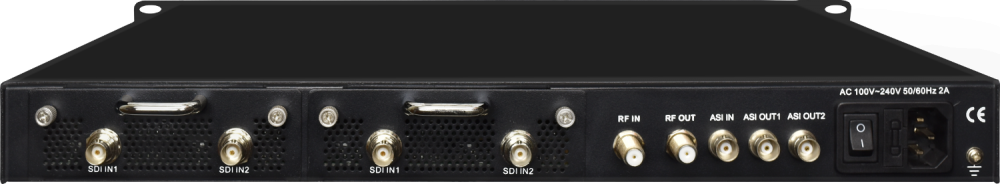

4 SDI input - PN: H-4SDI-DVBT-IPLL

Thor Broadcast SDI-DVBT-IP & SDI-DVBT-IPLL Product Lines

Thor HD-SDI to DVB-T modulators are combination devices that bundle real-time HD hardware encoders with a managed program stream multiplexer and agile RF QPSK modulator. Each chassis can encode up to 4 channels of HD-SDI video to MPEG-2 or H.264 and modulate the programs on up to 4 DVB-T carrier outputs. In addition to the encoded programs, the unit can also modulate programs encoded externally via an ASI input. This platform is most commonly used by large organizations or broadcasters that own SDI matrix routers. This platform is ideal for corporate MATV systems or in-house HD video distribution from SDI sources. This platform is not recommended for broadcast headend signal origination due to lack of 708 closed captioning support. For broadcasters requiring government-mandated 708 captioning and Dolby AC/3 audio, please contact a sales representative.

Digital Video Broadcast: Terrestrial DVB-T Modulation Standard

The DVB-T standard is the world's most widely adopted radio frequency modulation standard for digital video broadcast over terrestrial systems. This standard is used throughout the world for both cable and over-the-air digital video broadcast systems. The standard was first used in the United Kingdom and has since gained acceptance in over 90 countries worldwide. This standard supports the original DVB-T modulation protocols for both QPSK and QAM16/64. This chassis outputs either 2 or 4 adjacent RF carriers and can distribute programming anywhere between those channels. The unit also supports ingestion of externally encoded programming via the ASI input. The ASI input can be parsed for up to 120 Mbps of incoming programming based on model hardware and software selection.

SDI-DVBT-IP: Modulator Chassis with HD-SDI Encoder Cards

HD-SDI uncompressed digital video is commonly used in broadcasting and professional AV systems due to its convenience. Serial Digital Video can be carried over single-conductor coax cables and typically employs common BNC connectors. HD-SDI carries the same digital video data as HDMI, but without all the complicated digital content protection (DCP) and HDCP trouble. Thor multichannel encoder modulator chassis systems support encoder card input configurations from 1 to 4 channels. These cards convert HD-SDI inputs to DVB-T-compatible program streams.

DVBT-IPLL: Low Latency Encoding Option

Unit model numbers that include "LL" indicate that the model includes Thor's low latency encoding option. This new feature reduces the time delay between video input and encoded program output by more than 10 times. Standard model encoder modulator chassis systems typically have an encoding latency of 300/700-1200 ms, depending on encoding parameters and output configurations. For many applications, adding approximately 1 second of latency doesn't make a difference. For other applications, such as live events, 1 second of delay is very noticeable and prevents modulation from being used in distribution systems. The solution for live video broadcast applications is the Low Latency upgrade option for the encoders. Contact a Thor sales representative today for more information on encoding latency.

Encoder Card Compatibility between Modulator Chassis

Thor HDMI-DVBT-IP line of encoder modulators are designed for high-quality distribution of broadcast-quality video over coax cable. These systems are available in many configurations for a wide range of applications. This page covers models for a specific input video type combined with a modulator chassis programmed for a specific output format. It is important to note that encoder card types can usually be combined with encoder cards for other video types. For custom model configurations, please contact Thor directly for pricing and availability. While most firmware for Thor modulator chassis is inter-compatible, not all hardware will work with all software. Thor representatives are available for free design and consultation services. If you have any questions or concerns about a Thor system, contact a representative directly at 1-800-521-8467.
